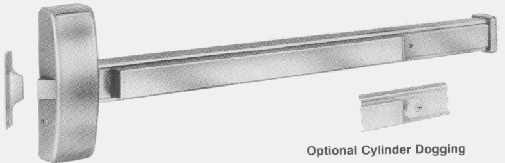

SERIES 1100-REVERSIBLE
FOR DOORS-Available for 1-3/8" to 2-1/4"
thick, up to 4' 0" wide Furnished standard for 1-3/4"
thick 3' 0" wide. See Door Widths and
Heights Chart for additional detail.
COVER- Lock Stile Assembly-Cold drawn Bronze,
Brass,Aluminum, Stainless Steel.
CHASSIS- Lock Stile Assembly-Cast Bronze or Tenzaloy.
TOUCHBAR ASSEMBLY-Heavy Wrought Bronze, Brass, Aluminum,
Stainless Steel.
END CAP-Cast Bronze or Tenzaloy
LATCHBOLT-Extruded Bronze, 3/4" throw.
STRIKES-Strike 810-86 furnished standard. Click here to
see optional strikes.
DOGGING - ¼ turn allen type dogging standard. Cylinder
dogging available as an option. Specify "CD" as suffix.
Cylinder not furnished, unless specified. (Use 1¼" long
mortise cylinder.)
TOUCHBAR HEIGHT-40" from floor standard. May be
varied as situation dictates.
REVERSIBLE - Not handed. Reversible for all functions and
trims. Standard packing RHRB.
UL LISTED - Panic Hardware - For FIRE EXIT HARDWARE see
page 7.
ANSI STD - A 156.3 Grade 1.
FlNISHES-US3, US4, US9, US10, US10B, US26, US26D, US28,
US32D
CYLINDERS - Rim Type, not furnished standard. Specify when
required.
STILE WIDTH - See chart.
NOTE
A. All devices can be converted from one function to another
simply by exchanging back plate assembly in lock stile case and
selecting proper outside trim. See page 15 for back plate
assemblies, and pages 11 & 12 for trims.
B. Covers stock hollow metal door cutouts for 86 and 161 on
single doors.

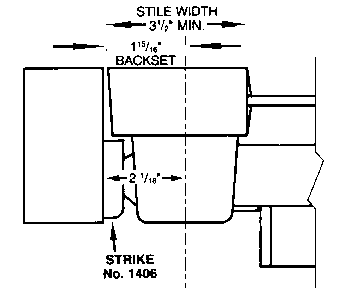

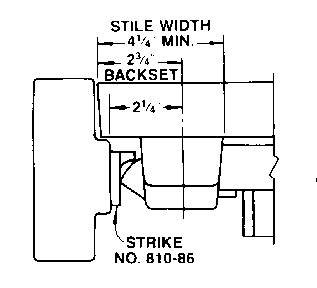

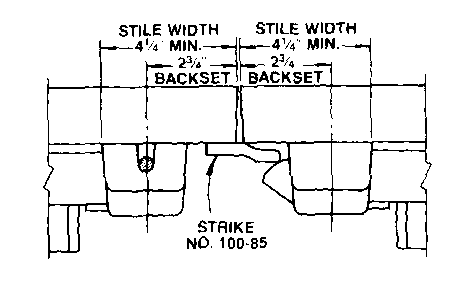

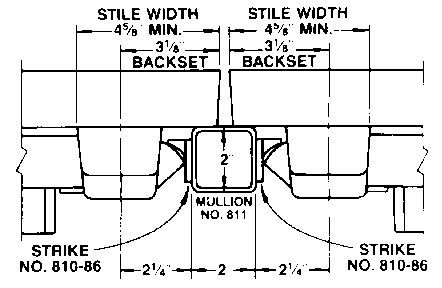

1.
2.
3.
4.
To view the full size versions of the above thumb-nail sketches click below:
Click here to see the Apex Series - Fire
Label Rating Chart.
To see ordering info for the 1100 series rim exit device click here.
